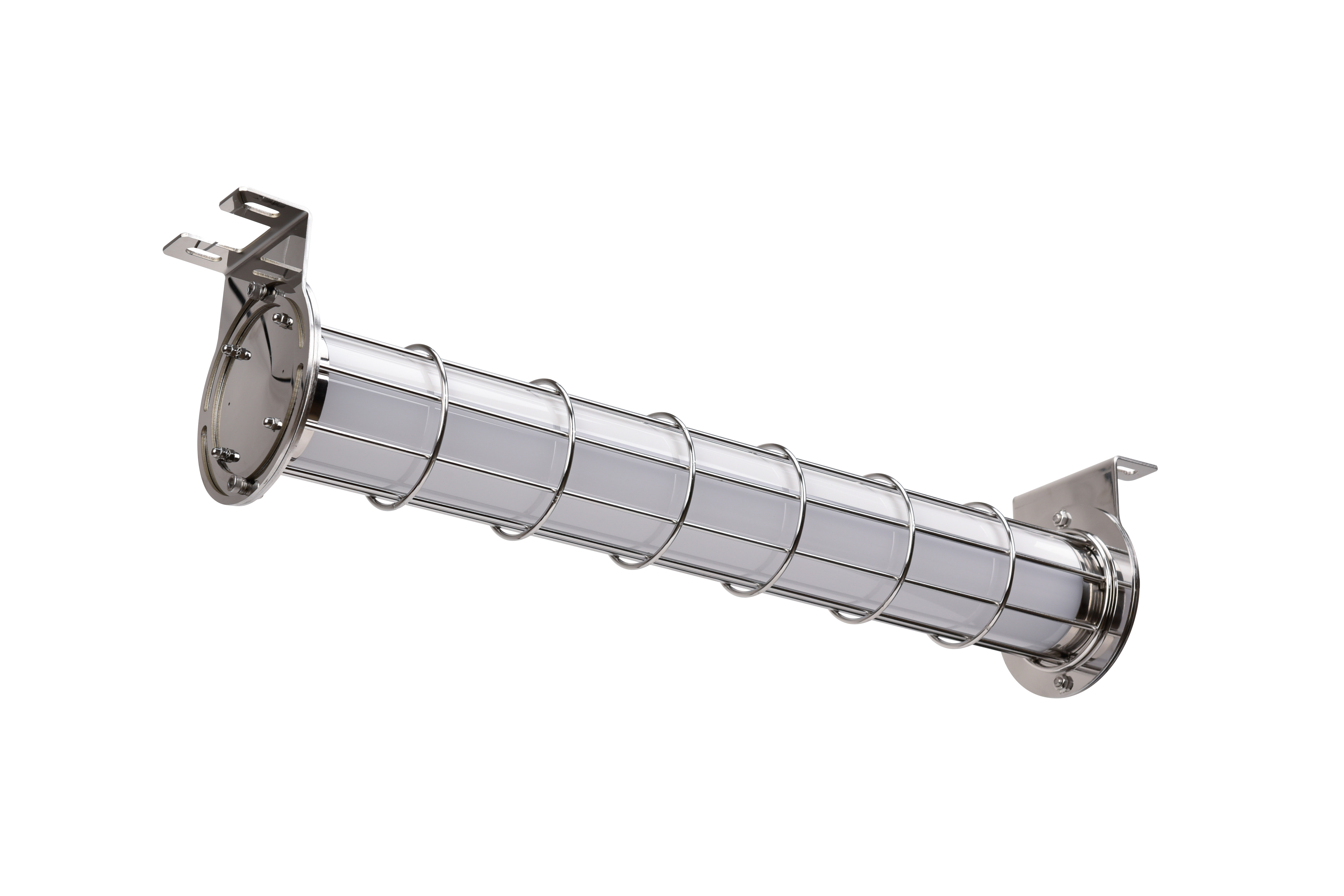

Factory Direct Best Price Led Explosion Proof Lights Ip67 Ik10 For Industrial Warehouse
Quick Detail:
● Anti-surge & lightning strikes up to 2KV, and withstand 3.5KV high voltage
● Luminous Efficiency:120LM/W
● LED Type: Samsung, High lumen efficacy SMD2835 led chips
●Beam Angle:180°
● LED Driver: JUSIN, 88% efficiency,flicker free,THD<15
● LED Driver Output: DC36-42V
● Function: Non-Dimmable
● Input voltage 120-277v AC universal voltage, 1.5m power cord with 3-pin plug
● CRI:80Ra
● IP67 & IK10
● Working Temperature:-30~50℃
● 5 years warrant
Product Description:
Specifications:
| Item | MF-ES01 |
| Input voltage | 120-277Vac 50Hz/60Hz |
| LED Power | 20W/40W |
| Luminaire Efficiency | 120lm/W |
| Delivered Flux(Tj80°c) | 17600 lm |
| IP Rating | IP66 |
| LED QTY | 120 pcs |
| Color temperature | 3000K-6500K |
| Function | Non-Dimmable |
| LED Driver | Meanwell |
| Color Rendering Index | Ra>80 |
| Power Factor | >0.94 |
| Lifespan | ≥50,000hrs |
| Operation Environment | Temperature:-30°C~50°C/Humidity:10%~95% |
| Material | Aluminum Alloy |
| Product Size(mm) | 685(L)*130(W)*155(H)/ 1285(L)*130(W)*155(H) |
| Net Weight | 3Kg/4.3Kg |
| Certificate | CE/RoHS |
| Warranty Period | 5 years |
Dimensions(mm)&Parameters:
Installation:
Step 1: Drill 4 holes according to the hole of the light holder.
Step 2: Install expansion screw into mounting hole.
Step 3: Lock nut to fix the light.
Step 4: Adjust the angle of light, fix the rotating bracket (Screw torque:2.5N/m) and plug in.
After-sales service:
● From the date of purchase, the product is provided with a free warranty for 5 years, and the following conditions are not included in the free warranty during the warranty period.
● Failure and damage caused by unpacking products; failure caused by falling and touching during handling and use.
● Failure to operate in accordance with the instructions.
● After the warranty period, if the parts need to be replaced during the maintenance process, only the cost of materials to replace the parts, free of time costs.
Applications:
Wildly applied in petrol station, canopy, airport, supermarket, train station, lobby, industry, shopping mall and indoor parking.
